Tcpdump

The Tcpdump tool and its libpcap library are written in C and C++ and were released for Unix-like systems in the late 1980s or early 1990s. Consequently, they are very stable and offer optimal speed. The libpcap library is the foundation for various other networking tools today. Moreover, it was ported to MS Windows as winpcap.

intro

Basic Packet Capture

You can run tcpdump without providing any arguments; however, this is only useful to test that you have it installed! In any real scenario, we must be specific about what to listen to, where to write, and how to display the packets.

Command	Explanation
tcpdump -i INTERFACE	Captures packets on a specific network interface
tcpdump -w FILE	Writes captured packets to a file
tcpdump -r FILE	Reads captured packets from a file
tcpdump -c COUNT	Captures a specific number of packets
tcpdump -n	Don't resolve IP addresses, i.e. not display hostname
tcpdump -nn	Don't resolve IP addresses and don't resolve protocol numbers
tcpdump -v	Verbose display; verbosity can be increased with -vv and -vvv

Consider the following examples:

• tcpdump -i eth0 -c 50 -v captures and displays 50 packets by listening on the eth0 interface, which is a wired Ethernet, and displays them verbosely.
• tcpdump -i wlo1 -w data.pcap captures packets by listening on the wlo1 interface (the WiFi interface) and writes the packets to data.pcap. It will continue till the user interrupts the capture by pressing CTRL-C.
• tcpdump -i any -nn captures packets on all interfaces and displays them on screen without domain name or protocol resolution.

Filtering Expressions

Logical Operators Three logical operators that can be handy:

• and: Captures packets where both conditions are true. For example, tcpdump host 1.1.1.1 and tcp captures tcp traffic with host 1.1.1.1.
• or: Captures packets when either one of the conditions is true. For instance, tcpdump udp or icmp captures UDP or ICMP traffic.
• not: Captures packets when the condition is not true. For example, tcpdump not tcp captures all packets except TCP segments; we expect to find UDP, ICMP, and ARP packets among the results.

Command	Explanation
tcpdump host IP 或 tcpdump host HOSTNAME	Filters packets by IP address or hostname
tcpdump src host IP 或	Filters packets by a specific source host
tcpdump dst host IP	Filters packets by a specific destination host
tcpdump port PORT_NUMBER	Filters packets by port number
tcpdump src port PORT_NUMBER	Filters packets by the specified source port number
tcpdump dst port PORT_NUMBER	Filters packets by the specified destination port number
tcpdump PROTOCOL	Filters packets by protocol; examples include ip, ip6, udp, tcp, and icmp

Consider the following examples:

• tcpdump -i any tcp port 22 listens on all interfaces and captures tcp packets to or from port 22, i.e., SSH traffic.
• tcpdump -i wlo1 udp port 123 listens on the WiFi network card and filters udp traffic to port 123, the Network Time Protocol (NTP).
• tcpdump -i eth0 host example.com and tcp port 443 -w https.pcap will listen on eth0, the wired Ethernet interface and filter traffic exchanged with example.com that uses tcp and port 443. In other words, this command is filtering HTTPS traffic related to example.com.

you can count the lines by piping the output via the wc command

user@TryHackMe$ tcpdump -r traffic.pcap src host 192.168.124.1 -n | wc
reading from file traffic.pcap, link-type EN10MB (Ethernet)
    910   17415  140616

补充

# What is the IP address of the host that asked for the MAC address of 192.168.124.137?
tcpdump -r traffic.pcap arp

端口 53 是 DNS（域名系统） 使用的端口。DNS 负责将人类可读的域名（例如 example.com）转换为计算机可理解的 IP 地址（例如 192.168.1.1），使设备能够正确找到目标服务器。

DNS 主要使用两种协议：

• UDP 端口 53：用于标准 DNS 查询（速度快，但没有可靠的传输）。
• TCP 端口 53：用于较大的 DNS 响应或区域传输（可靠但速度稍慢）。

# What hostname (subdomain) appears in the first DNS query?
tcpdump -r traffic.pcap port 53 -n

Advanced Filtering

Header Bytes

The purpose of this section is to be able to filter packets based on the contents of a header byte. Consider the following protocols: ARP, Ethernet, ICMP, IP, TCP, and UDP. These are just a few networking protocols we have studied. How can we tell Tcpdump to filter packets based on the contents of protocol header bytes? (We will not go into details about the headers of each protocol as this is beyond the scope of this room; instead, we will focus on TCP flags.)

Using pcap-filter, Tcpdump allows you to refer to the contents of any byte in the header using the following syntax proto[expr:size], where:

• proto refers to the protocol. For example, arp, ether, icmp, ip, ip6, tcp, and udp refer to ARP, Ethernet, ICMP, IPv4, IPv6, TCP, and UDP respectively.

• expr indicates the byte offset, where 0 refers to the first byte.

• size indicates the number of bytes that interest us, which can be one, two, or four. It is optional and is one by default. To better understand this, consider the following two examples from the pcap-filter manual page (and don’t worry if you find them difficult):

• ether[0] & 1 != 0 takes the first byte in the Ethernet header and the decimal number 1 (i.e., 0000 0001 in binary) and applies the & (the And binary operation). It will return true if the result is not equal to the number 0 (i.e., 0000 0000). The purpose of this filter is to show packets sent to a multicast address. A multicast Ethernet address is a particular address that identifies a group of devices intended to receive the same data.

• ip[0] & 0xf != 5 takes the first byte in the IP header and compares it with the hexadecimal number F (i.e., 0000 1111 in binary). It will return true if the result is not equal to the (decimal) number 5 (i.e., 0000 0101 in binary). The purpose of this filter is to catch all IP packets with options.

Don’t worry if you find the above two examples complex. We included them so you know what you can achieve with this; however, fully understanding the above examples is not necessary to finish this task. Instead, we will focus on filtering TCP packets based on the set TCP flags.

You can use tcp[tcpflags] to refer to the TCP flags field. The following TCP flags are available to compare with:

• tcp-syn TCP SYN (Synchronize)
• tcp-ack TCP ACK (Acknowledge)
• tcp-fin TCP FIN (Finish)
• tcp-rst TCP RST (Reset)
• tcp-push TCP Push

Based on the above, we can write:

• tcpdump "tcp[tcpflags] == tcp-syn" to capture TCP packets with only the SYN (Synchronize) flag set, while all the other flags are unset.
• tcpdump "tcp[tcpflags] & tcp-syn != 0" to capture TCP packets with at least the SYN (Synchronize) flag set.
• tcpdump "tcp[tcpflags] & (tcp-syn|tcp-ack) != 0" to capture TCP packets with at least the SYN (Synchronize) or ACK (Acknowledge) flags set.

Displaying Packets

Tcpdump is a rich program with many options to customize how the packets are printed and displayed. We have selected to cover the following five options:

Command	Explanation
tcpdump -q	Quick and quite: brief packet information
tcpdump -e	Include MAC addresses
tcpdump -A	Print packets as ASCII encoding
tcpdump -xx	Display packets in hexadecimal format
tcpdump -X	Show packets in both hexadecimal and ASCII

---

how2use

BPF 过滤器

BPF 过滤器

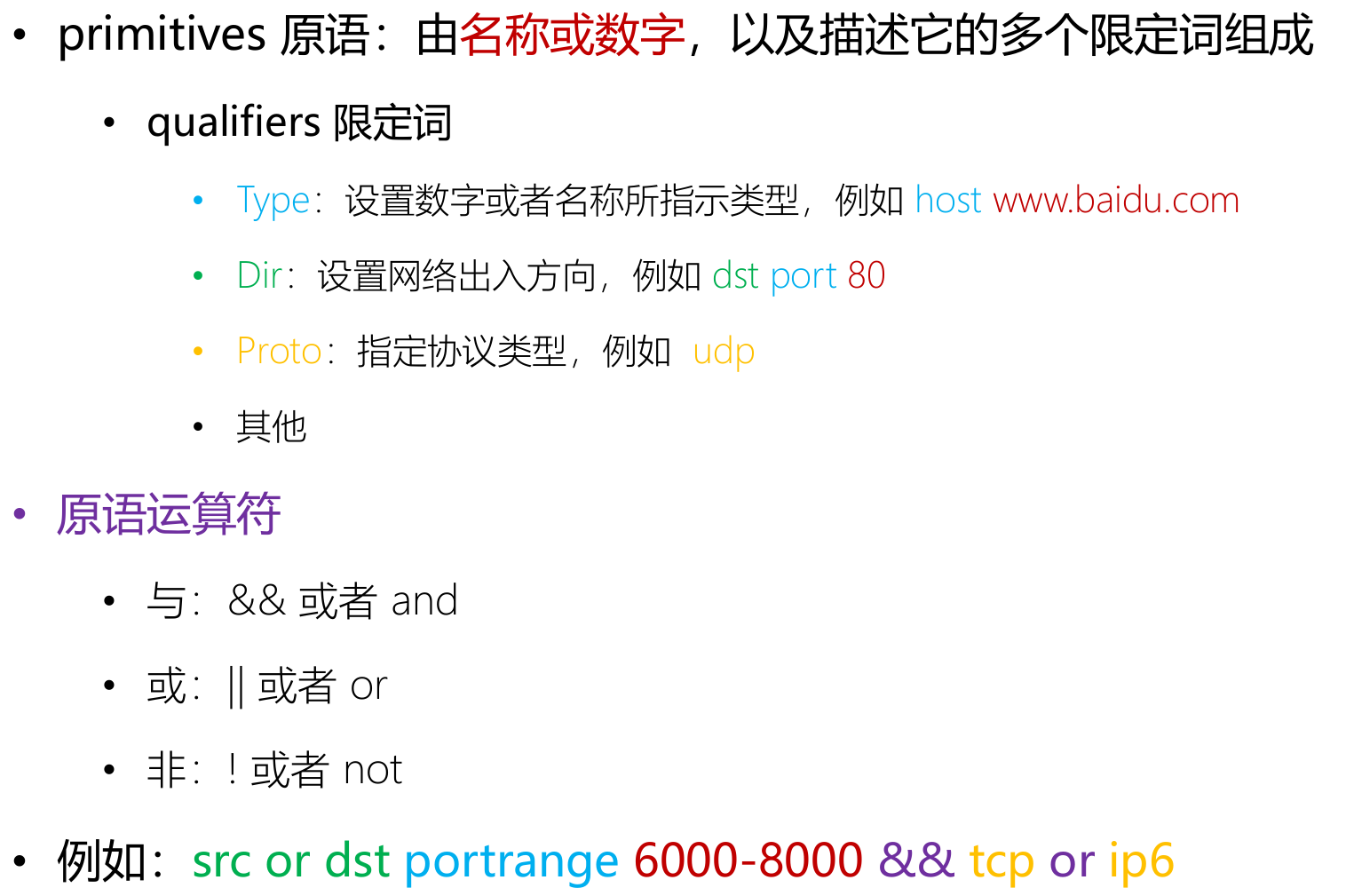

BPF：Expression 表达式

限定词

BPF 过滤器-限定词

捕获及停止条件

• -D 列举所有网卡设备
• -i 选择网卡设备
• -c 抓取多少条报文
• --time-stamp-precision 指定捕获时的时间精度，默认毫秒 micro，可选纳秒 nano
• -s 指定每条报文的最大字节数，默认 262144 字节

文件操作

• -w 输出结果至文件（可被Wireshark读取分析）
• -C 限制输入文件的大小，超出后以后缀加 1 等数字的形式递增。注意单位是 1,000,000 字节
• -W 指定输出文件的最大数量，到达后会重新覆写第 1 个文件
• -G 指定每隔N秒就重新输出至新文件，注意-w 参数应基于strftime 参数指定文件名
• -r 读取一个抓包文件
• -V 将待读取的多个文件名写入一个文件中，通过读取该文件同时读取多个文件

输出时间戳格式

• -t 不显示时间戳
• -tt 自 1970年 1 月 1 日 0 点至今的秒数
• -ttt 显示邻近两行报文间经过的秒数
• -tttt 带日期的完整时间
• -ttttt 自第一个抓取的报文起经历的秒数

分析信息详情

• -e 显示数据链路层头部
• -q 不显示传输层信息
• -v 显示网络层头部更多的信息，如 TTL、id 等
• -n 显示 IP 地址、数字端口代替 hostname 等
• -S TCP 信息以绝对序列号替代相对序列号
• -A 以 ASCII 方式显示报文内容，适用 HTTP 分析
• -x 以 16 进制方式显示报文内容，不显示数据链路层
• -xx 以 16 进制方式显示报文内容，显示数据链路层
• -X 同时以 16 进制及 ACII 方式显示报文内容，不显示数据链路层
• -XX 同时以 16 进制及 ACII 方式显示报文内容，显示数据链路层
